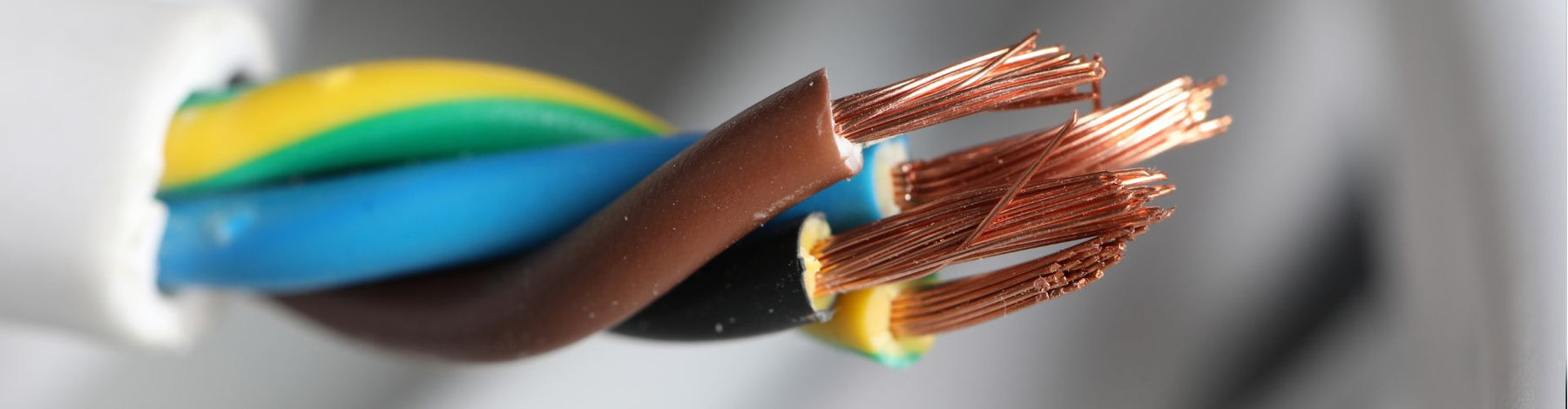

BS6862 PVC Automotive Cable: Standards and Applications

BS6862 PVC cable is a longstanding British specification for low-voltage vehicle wiring that continues to appear in automotive cable ranges and procurement documents across the UK.

While it remains a familiar reference for general-purpose automotive PVC wire, it is not automatically required for every modern vehicle programme. Buyers need to understand what this specification actually covers, where it applies, and when a newer standard might be the better fit.

Key Takeaways

BS6862 PVC cable is designed for low-voltage electrical wiring in vehicles, and it remains a recognised reference for certain automotive and marine applications. However, there are important nuances that engineering and procurement teams should keep in mind:

• BS 6862-1:1971 covers copper-conductor vehicle cables with PVC insulation, but buyers must always confirm the exact part, edition and product datasheet rather than relying solely on the label "BS6862 cable."

• BS6862 PVC single core and multicore cables are commonly used for general-purpose automotive wiring looms, lighting and auxiliary circuits, and the cable is suitable for 12V and 24V circuits in vehicles, trailers and marine systems.

• Suitability depends on voltage, temperature and installation conditions for each specific application.

• BS6862 on its own does not prove "UK compliance" for a vehicle, wiring loom or OEM programme. Full compliance depends on wider vehicle, regulatory and customer requirements.

• Cable House is a uk-based B2B supplier that can help engineering and procurement teams select between BS6862 PVC cable and modern ISO or OEM alternatives for automotive and industrial projects.

What is BS6862?

BS 6862 is a British Standard series associated with cables for vehicles. BS 6862-1:1971 specifically covers cables with copper conductors and PVC insulation, providing a specification reference for cable construction and performance requirements in low-voltage automotive use.

• When suppliers describe a product as "BS6862 PVC cable," they are typically referring to general-purpose automotive PVC wire manufactured with reference to this legacy specification, often in single core or multicore constructions for 12 V and 24 V vehicle systems.

• The standard sets out requirements for conductor material-BS6862 PVC cable features stranded copper conductors for good conductivity-as well as insulation performance, dimensions and test criteria.

• BS6862 PVC cable has good resistance to abrasion and moisture, and is compliant with British Standards for flame retardancy, making it a practical choice for many general purposes within a vehicle's electrical system.

• This article does not reproduce or paraphrase exact tables, test procedures or wording from BS 6862-1:1971. Engineers should consult the official BSI document alongside the cable manufacturer's technical datasheet.

• Procurement teams should treat "BS6862 cable" as a specification reference that must be backed up by traceable documentation, part numbers and batch information from the supplier.

Is BS6862 still a current automotive cable standard?

BSI still lists BS 6862-1:1971 as the current published release within the BS 6862 series. At the same time, the British Cables Association includes BS 6862-1 in its catalogue of obsolete British cable product standards. This creates a tension that buyers need to understand.

• "Current release" in a standards catalogue does not necessarily mean BS6862 is the preferred or only specification for contemporary vehicle programmes, especially where OEMs now reference ISO or proprietary standards.

• Some existing vehicle platforms, aftermarket harnesses, marine conversions and specialist equipment built over recent decades still quote BS6862 PVC cable in their drawings, so replacement and service parts must continue to match that reference.

• BS ISO 19642-3:2019 is an example of a more modern international standard covering single-core copper automotive cables for systems up to 30 V AC or 60 V DC. Newer programmes may lean towards this or similar ISO families instead of BS6862.

• BS6862 remains a recognised reference in parts of the market, but engineers should always check whether the drawing, OEM specification or customer contract actually requires BS6862, an ISO part such as ISO 19642, or another standard entirely.

This distinction matters. A change in specification can affect everything from cable dimensions to temperature ratings and chemical resistance.

What is BS6862 PVC cable used for?

BS6862 PVC automotive cable is a general-purpose low-voltage vehicle wiring option, commonly used in 12 V and 24 V systems where PVC insulation and stranded copper conductors provide a robust, cost-effective solution. The cable is designed for automotive wiring applications including lighting and battery cables.

• Internal vehicle wiring: dashboard circuits, instrument clusters, switch feeds and fuse box connections.

• Lighting circuits: headlamp, tail lamp and indicator feeds.

• Auxiliary equipment: pumps, fans, heater blowers and aftermarket accessories.

• Control wiring: relay coils, sensor feeds and low-current signal runs within wiring harnesses and looms.

• Specialist vehicles: breakdown trucks, horseboxes, mobile plant, trailers and caravans, where BS6862 PVC cable is often the documented standard.

• Marine applications: BS6862 PVC cable is commonly used in marine electrical systems and allied low-voltage installations where the specification or customer documentation permits.

• Classic vehicle restoration: BS6862 PVC cable is often used for classic vehicle restoration, where matching original loom colours, conductor sizes and insulation types is essential.

BS6862 PVC cable is resistant to petrol, diesel, and lubricating oils, and is typically available in various colors for circuit identification. However, engineers must still validate voltage rating, conductor size, temperature range and environmental resistance against the actual installation conditions-whether engine bay, chassis or cabin.

Typical BS6862 cable constructions

BS6862 automotive cables are available in several constructions, with PVC insulation, copper conductors and a range of core counts to support different parts of a vehicle wiring loom. BS6862 specifies single core PVC auto cables as well as multicore variants for more complex circuits.

Cable House supplies BS6862-style PVC cable in common conductor sizes-from 0.5 mm² up to 10.0 mm²-in a wide colour range and various reel lengths suitable for OEMs, harness builders and auto electricians. Buyers should always compare key datasheet elements when matching an existing BS 6862 cable on a legacy loom.

Single-core PVC automotive cable

Single core BS6862 PVC cable consists of one stranded copper conductor with PVC insulation. It is widely used as general purpose automotive wire for individual circuits in 12 V and 24 V vehicle systems. Single Core PVC Auto Cable meets BS6862 standards across a range of sizes and ratings.

• Common sizes range from fine 0.5 mm² and 0.75 mm² cable for signal and lighting circuits through to 6.0 mm² and 10.0 mm² cable for higher-current feeds such as heater blowers or auxiliary power connections.

• Single Core PVC Auto Cable is available in 10.00mm² size, with a nominal current rating of 70 amps and an outer diameter of 7.5 mm, making it suitable for demanding auxiliary and battery feed circuits.

• Cables are available in various colors including black, brown, and red, supporting clear circuit identification in vehicle looms. Cable House can also offer custom colour coatings or striping on request for OEM programmes.

• Single core PVC cable is typically supplied on reels or drums. B2B customers often order 30 m coils, 100 m reels or larger bulk quantities depending on production volumes.

• Designers must match the conductor cross-sectional area and strand construction to the load current, acceptable volt drop and flexibility requirements for the specific routing path.

Twin-core and multicore cable

BS6862 includes specifications for multi-core PVC cables. Twin-core and multicore PVC cable groups multiple insulated single cores under a common outer sheath, simplifying installation where several circuits share the same route-for example trailer lighting, caravan feeds or instrument clusters.

• Two-core flat PVC cable is commonly used for positive and negative runs to lamps or auxiliary loads.

• Round multicore constructions can carry combinations of power, lighting and low-current control signals within one cable.

• Multicore BS6862 PVC cable can reduce loom complexity, assembly time and the risk of wiring errors, particularly in repeatable harness production for OEM and specialist vehicle builders.

• Engineers should still size each core correctly, check sheath diameter against clips and conduits, and verify that bend radius and flexibility are suitable for the intended routing path.

• Cable House can help customers select between single core, twin-core and multicore PVC options depending on the loom layout, production method and service considerations.

Standard-wall and thin-wall distinctions

Many BS6862 PVC products are considered "standard-wall" automotive cables, with insulation thicknesses that give a robust outer diameter but require slightly more routing space than modern thin-wall constructions such as FLRY-B.

• BS6862 PVC cable should not automatically be assumed to be FLRY or other thin-wall specification. The governing document, insulation thickness and temperature rating must be confirmed from the cable datasheet.

• Choosing between standard-wall and thin-wall insulation affects total loom size, weight, bundling, and the choice of terminals, seals and grommets-particularly in compact modern vehicles.

• For space-constrained harnesses or higher temperature locations, Cable House can propose alternative thin-wall or XLPE-insulated cables that better align with ISO 19642 or OEM-specific specifications.

• Buyers should review cross-sectional drawings or dimensional tables when substituting a legacy BS6862 PVC cable on an existing loom design.

Key BS6862 PVC cable specification checks

BS6862 on its own is not enough to select a cable. Engineers should treat the product datasheet as the primary source for ratings and then verify it aligns with the required standard and application. BS6862 PVC cable should not be used for mains power installations-it is strictly a low-voltage vehicle cable product.

Current-carrying capacity and volt-drop calculations depend on installation conditions-ambient temperature, bundling density and route length-and must be worked out against the specific vehicle system. Procurement teams should obtain technical datasheets and, where needed, batch test reports or certificates from Cable House to support quality, traceability and audit requirements.

Does BS6862 cable provide UK compliance?

While BS6862 is a recognised British specification for vehicle cables, its use does not in itself guarantee overall "UK compliance" for a wiring loom, vehicle or industrial product.

• Full compliance for a vehicle system depends on many layers: automotive type-approval regulations, EMC requirements, component approvals, OEM engineering standards and correct installation practices-not just the cable standard.

• An OEM or tier supplier may specify BS6862 PVC cable for certain looms, but can also impose extra requirements such as higher temperature ratings, enhanced abrasion resistance or specific test regimes that go beyond the legacy standard.

• UK buyers should confirm with their responsible design authority, quality team or notified body which cable standards are acceptable for a given programme, rather than assuming that "BS6862" on a label is sufficient.

• Cable House can review drawings and help customers choose between BS6862 PVC cables and modern ISO or OEM-specified alternatives, without making any legal or regulatory compliance claims on behalf of the customer.

BS6862 vs modern ISO automotive cable standards

Many modern vehicles and EV platforms reference ISO-based automotive wire standards. BS6862 cable has largely been replaced by ISO 6722 for new automotive applications, while BS6862 remains relevant mainly for legacy, specialist or specifically documented applications.

Neither specification universally replaces the other. Engineers should match the loom design, operating environment and customer documentation, using Cable House's technical support where needed.

When to consider an alternative cable

Although BS6862 PVC cables suit many general-purpose low-voltage applications, certain environments and system requirements call for alternative constructions. BS6862 PVC cable is not suitable for high-temperature engine environments where continuous temperatures exceed +70 °C.

• Higher-temperature routes: near exhaust manifolds, turbochargers or alternators where thin-wall FLRY-B or XLPE cable performs better.

• Compact looms: where thin-wall cable reduces overall diameter and weight compared to standard-wall BS6862.

• High-current connections: battery interconnects, starter cables, winch feeds or inverter links in conventional and electric vehicles requiring heavy-duty high-flex battery cable.

• Chemical and abrasion exposure: underbody or wheel-arch routes where enhanced jacketing or cross-linked insulation offers longer service life.

• EV and hybrid platforms: dedicated high-voltage orange cable types conforming to OEM or ISO standards must be used instead of standard BS6862 PVC cable, due to insulation, screening and safety requirements.

• Data and communication circuits: CAN bus, LIN bus or other communication networks that need screened data cable.

Discuss the full duty cycle, routing and mechanical constraints with Cable House so that an appropriate cable family-BS6862 or otherwise-can be selected for reliability and future serviceability.

Questions to ask before ordering BS6862 cable

A structured checklist helps engineers, buyers and workshop owners specify the correct BS6862 PVC cable first time. Before placing an order, work through these questions:

1. Which exact standard or customer specification is stated on the drawing?

2. Is BS6862 explicitly required, or is an ISO or FLRY alternative acceptable?

3. What conductor cross-sectional area and strand construction are needed for the current and volt-drop limits?

4. What temperature range and environment will the cable operate in?

5. Is single core, twin-core or multicore better for this route?

6. Do we need standard-wall or thin-wall construction?

7. What colours and reel lengths are required for production efficiency?

8. Are any custom markings, coatings or striping needed?

9. Has the chosen cable been validated with the intended terminals and crimp tooling?

10. What documentation, test data and batch traceability must Cable House provide to support approvals and audits?

Sourcing BS6862 PVC cable from Cable House

Cable House is a uk-based B2B supplier specialising in automotive PVC cables, including BS6862-style single core and multicore products for OEMs, harness manufacturers, garages and industrial users. Cables are available in various lengths and colors to meet production and aftermarket needs.

• Standard sizes and colours available from stock, with fast lead times on bulk orders and flexible reel lengths.

• Support for urgent or project-based requirements across automotive, marine and industrial sectors.

• Related product ranges-including thin-wall FLRY-B cable, high-flex battery cables and power-generation wiring-manufactured to support full vehicle or equipment builds alongside BS6862 general-purpose automotive wire.

• Browse the dedicated BS6862 PVC cable collection and the wider automotive cable category on the Cable House website for detailed product options and datasheets.

Request a quote with your exact conductor sizes, colours and lengths, or speak to the Cable House team for help cross-referencing a legacy BS6862 cable against modern alternatives.

FAQs on BS6862 PVC automotive cable

These FAQs address common practical questions that may not be fully covered in the main article above.

Can BS6862 PVC cable be mixed with other automotive cable types in one loom?

Mixing is technically possible, but designers must ensure that all cables in the loom meet or exceed the required voltage, temperature and chemical resistance for that application, and that terminations, seals and grommets are compatible with the different outer diameters and insulation materials. Where an OEM or customer specification is in force, it may restrict mixing standards. In such cases, the responsible engineer should approve any substitutions before production begins. Cable House can help compare datasheets for BS6862 PVC cable and alternative thin-wall or XLPE products to check whether mixed looms are appropriate for the project.

How should BS6862 PVC automotive cable be stored before use?

PVC automotive cable should be stored on its original reels in a cool, dry location away from direct sunlight, ozone sources and extremes of temperature to maintain insulation flexibility and performance. Reels should be kept off the floor where possible, protected from crushing or sharp edges, and rotated on a first-in, first-out basis for long-term projects. If cable has been exposed to damage, kinking or visible insulation cracking, it should not be used in safety-critical vehicle circuits. Contact Cable House to arrange replacement stock if existing cable shows signs of degradation.

What if the existing cable on a vehicle loom is unmarked-can I assume it is BS6862?

Installers should not assume an unmarked vehicle cable is BS6862. Instead, assess the conductor size, colour, insulation type and any available vehicle documentation or loom drawings. Where the original standard cannot be confirmed, the safest approach is to identify the function of the circuit, its current and environment, then select a replacement cable whose datasheet clearly meets or exceeds those requirements. Send Cable House samples or photographs of legacy cables so the team can help with cross-identification and propose suitable BS6862 PVC or modern alternative products.
